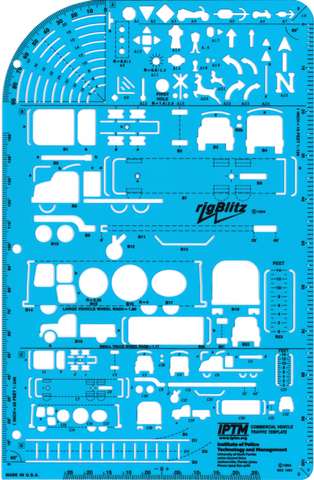

rigBlitz Commercial Vehicle Traffic Template
US Scale
designed by R.W. Rivers

The rigBlitz Commercial Vehicle Traffic Template is another quality instrument designed by R.W. Rivers expressly for drawing sketches or scale diagrams of crashes involving commercial vehicles. A metric scale template is also available; see it's separate listing.

U.S. scale: 1 inch = 120 inches and 1 inch = 240 inches

The cutouts allow any type and shape of cab and truck body or tractor and trailer to be drawn in any configuration.

So that you do not have to swap between multiple templates, the following cutouts are also included:

  • automobiles
  • railroad engines
  • railroad cars
  • railroad tracks
  • traffic signs
  • traffic signals
  • turn arrows
  • motorcycles
  • people
  • animals

In addition, the rigBlitz Commercial Vehicle Traffic Template has a protractor for measuring and constructing angles and comes with an illustrated instruction manual.


Save 10% when you order 10 or more! Use Code BULK145 in Cart.
